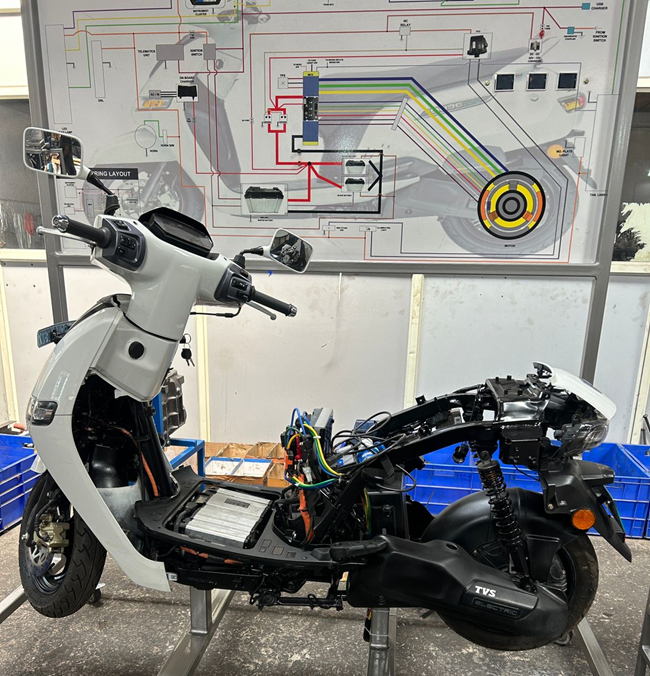

2 wheeler EV Lab set up

⚡ Working demo model of an electric two-wheeler with all key components (motor, battery, inverter, control unit, wheels, suspension, and electricals)

⚡ Display of AC/DC circuits with safety covers and color coding

⚡ Equipped with meters to monitor voltage, current, RPM, and torque

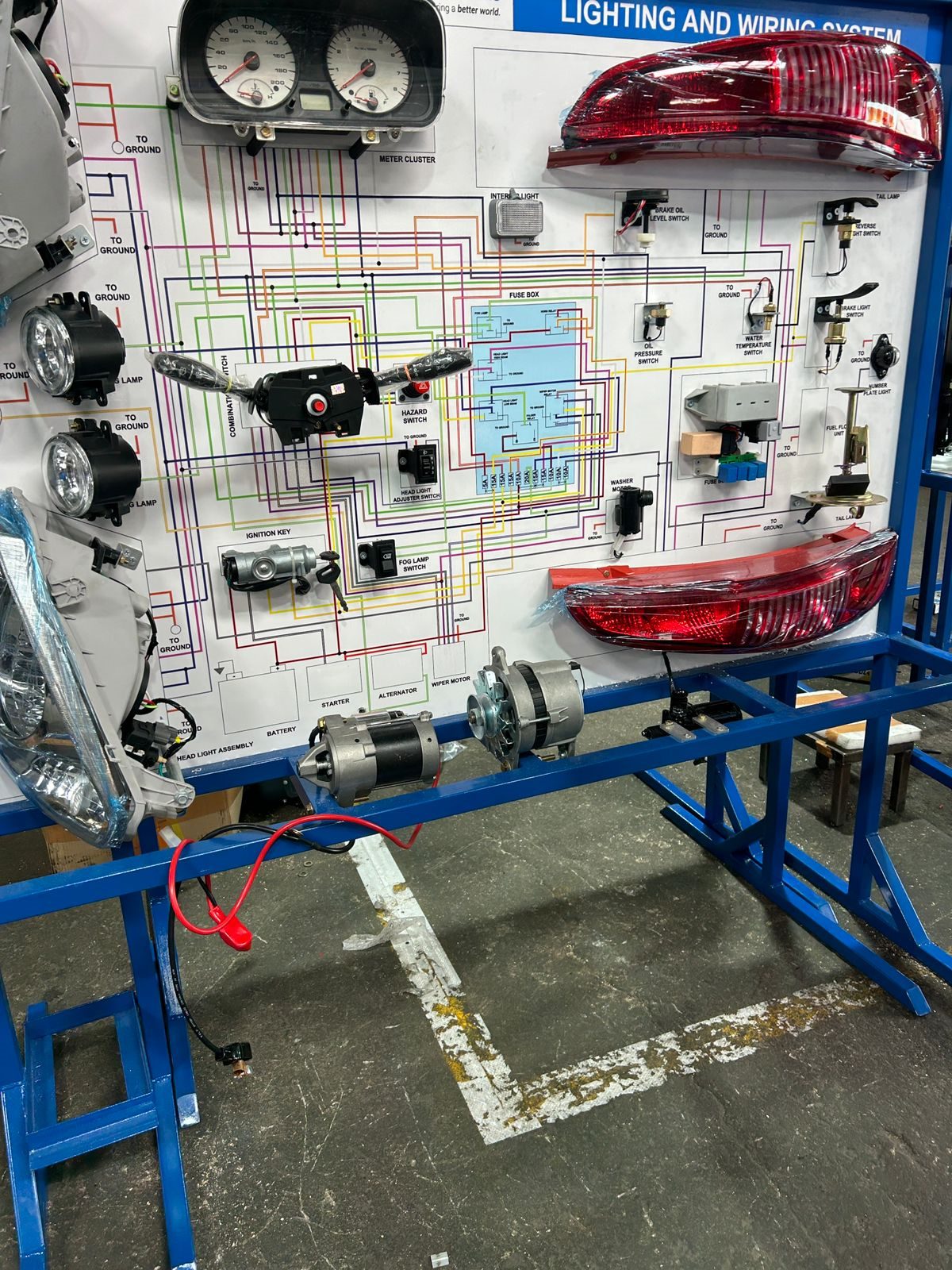

EV Wiring Test Bench

⚡ The Electrical System setup gives a complete idea of the electrical system and circuit of a vehicle.

⚡ Working of head light Brake light, side indicator, Horn, parking lights, spark in spark plugs

⚡ Demonstration of the working of Self starter, Alternator, Wiper Motor, Distributor, Horn relay.

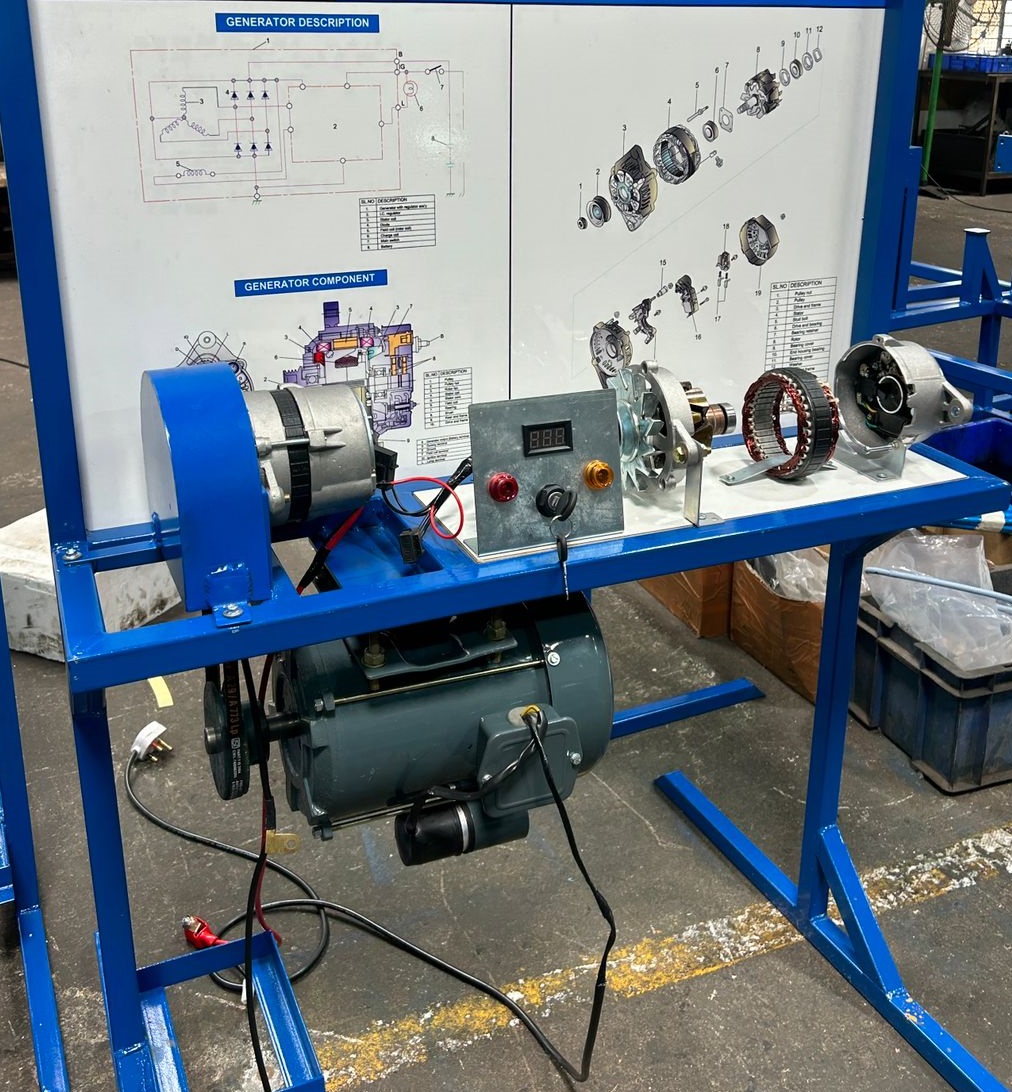

Charging System Test Bench

⚡ Outcome-based modules, experiments, TTT, assessment kits and certifications.

⚡ Familiar with the working principle of the energy recovery system of pure EVs;.

⚡ Braking energy recovery of electric vehicles when braking at different speeds.

⚡ Simulate the charging and discharging of the battery under different conditions.

Electric Vehicle Motor Test Bench

⚡ Test Bench with PMSM MID DRIVE MOTOR EV Kit with 5 HP Dyno Loading/Mechanical Loading.

⚡ Real-time system function and motor drive demonstration and Electrical system layout.

⚡ Simulate energy recovery under different operational conditions.

⚡ Simulate battery charging/discharging behaviors under load along with electrical parameter measurements

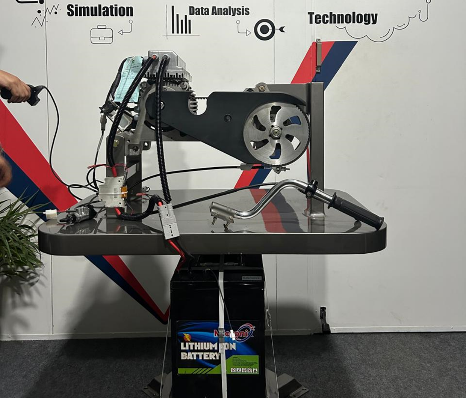

Digital Twin Lab Setup

⚡ Motor drive kits, battery & BMS benches, chargers, CAN tools, simulators.

⚡ Runnable hardware system for twinning the Battery and Motor for finding SOC /SOH of battery.

⚡ Data acquisition in real time and real time dashboarding for in-service monitoring and alerts.

⚡ Digital Twin software platform consists of Data Analytics suite(RapidMiner), Real time streaming and Analytics.

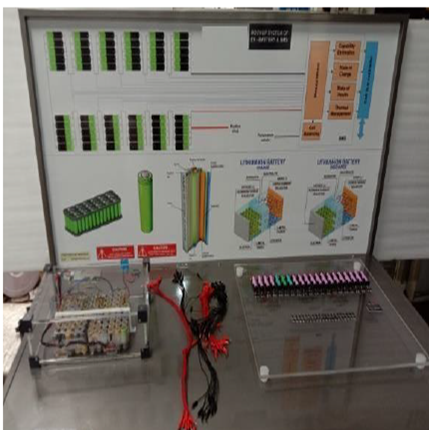

Battery Pack Test Bench

⚡Effects of parallel and series connections of cells and packs

⚡Li-ion individual cells (3.2 V) will be arranged with breakout connections

⚡The configured battery packs can be connected to a load or an EV motor for testing.

⚡Evaluate battery behavior with external loads and dynamic current draw

⚡Building battery packs of different voltages & Effects of parallel and series connections of cells and packs
